Fluoride | SMR 40 (Fluoride 센서)
페이지 정보
작성자 최고관리자 작성일21-02-04 13:48 조회109회 댓글0건본문
-
- IP68 방진 방수구조
- 온도 보상으로 정확도 향상
- Modbus RTU 제공
- 소프트웨어를 통한 교정
- 다양한 통신 지원
◈ Description
Fluoride Analyzer is connected directly via RS485 communication interface, providing simple, reliable, cost- saving process data with remote monitoring, calibration, configuration and diagnostics capabilities.
Housing in a robust IP68 proof enclosure, 1500 N tensile strength Kevlar reinforced cable, up to 1.2 km digital data transmission, F- Analyzer is ideally used in water/wastewater industry
◈ Features
- Robust IP68 Water Submersible Enclosure, Solution Without Cabinet
- On-line Realtime Measurement
- Ultra Low Power Consumption, Ideal for Outdoor Applications
- Temperature Compensation
- High Reliability, Drift Free
- Surge Protection for Power and RS485 Communication
- 1.2 Km RS485 Digital Communication, Minimize Cabling and Engineering Cost
- Software Configuration Calibration and Data Monitoring
- Onboard memory allowing users to easily calibrate and configure sensor at lab and distribute to various fields sites
- Standard Modbus RTU Protocol, Direct Connected with PLC, HMI, Eliminate I/O Module Cost

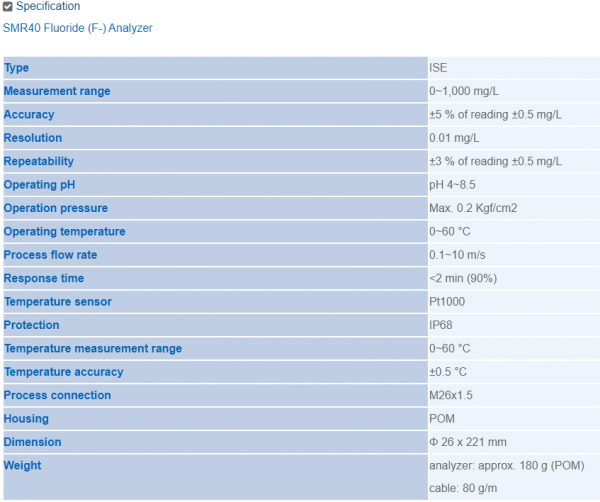

General
- Output Signal: RS485 (Modbus RTU protocol), 19,200 bps, 8 data bits, no parity, 1 stop bit; 4~20 mA (optional)
- Data Resolution: 16 bits (0.001% FS)
- Surge Protection: 4000 V DC
- Power: 3.6~12 V DC ±10%, 20 mA
- Protection: polarity, overload, short circuit, lightening
- Safety: CE, FCC
- Surface water, industry, fishery, water treatment, wastewater
- The ion selective electrode continuous measurement of potassium is carried out with a specific membrane that is selective of potassium ion. That membrane create charge seperation between the water surrounded electrode and internal filling solution.
- The charge is measured as a voltage that changes the concentration in the water adjacent the membrane.
- Compared with the traditional colorimetric method, there are many advantages such as fast response time, more accurate, easier and no reagents used.
